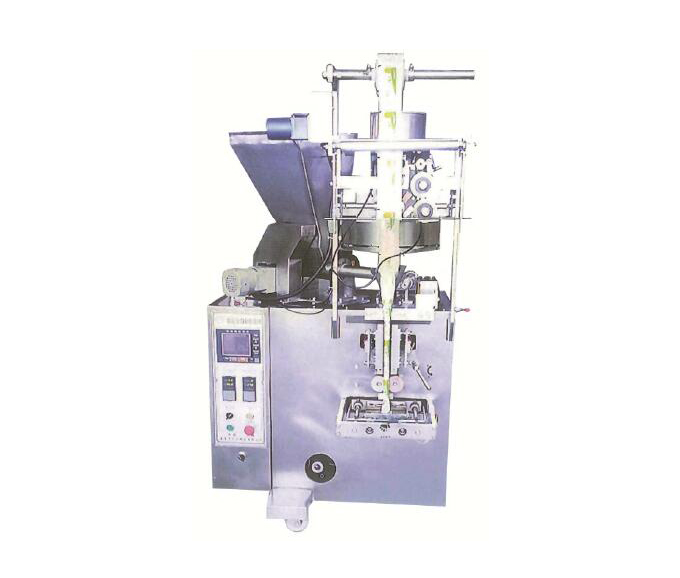

OCL-320双下料全自动包装机 Double blanking automatic packaging machine
全国服务热线:
159-1595-6886(微信同号)全国服务热线:
159-1595-6886(微信同号)用途:Application
本机采用显示屏控制系统,客户只需要在显示屏上设定所需的袋子长度,包装量。控制系统则整机自动调节,达到最佳包装速度。先进的光电控制系统能将包装袋准确分切,保证包装袋的图标完整。使用进口无极调速式可调性下料系统,可自动实现制袋,计量,填充,封口,计数,分切全过程。
This machine adopt display screen control system customers only need to set the bag length and filler amounts on the screen machlRe will automatically adjust to the best package speed. Advanced photoelectric control system make sure precised bag cutting,guarantee the ful logo of the bag Filling system adopts stepless speed transmission we can achieve the whole packing process like bag forming, metering。filling,sealing, counking and cutting.
功能:Function
适用于食品,化工,医药,调味品等粉状,颗粒状,液体状等无粘性物料包装。
Suitable to powdery, granular. liquid and non一coherent material offood chemical。medicine. seasoning industry
备注:P.S
可根据需要添加冲孔装置。
Punching device is available.
技术参数:Technical Parameter
袋型Sachet type | 三/四边封3/4 sides | |
背封back seal | ||
袋子尺寸范围 | 最大尺寸Max.Size | 140mm(W)x160mm(L) |
Sachet size range | 最小尺寸Min.Size | 40mm(W)x50mm(L) |
计量范围 Filling Rate | 客户定制(cusromized) | |
包装速度 Packfng Speed | 30-70 bagslmin | |
主机功率 Electricity Pawer | 3.5kw | |
电源要求 Working Voltage | 220V/50Hz | |
卷膜直径 Film Roll Diameter | 450 mm | |
最大膜宽 Max Film Width | 320mm | |
机器尺寸 Machine dimension | 3320x980x1550 mm | |
机器重量 Machine Weieht | 300kg |
