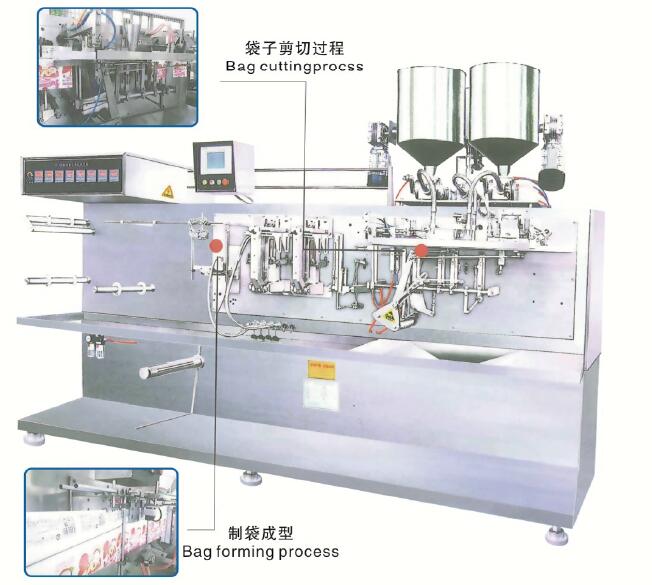

OCL-180水平式制袋(自立袋)全自动包装机 Horizontal bag making (stand-up pouch) automatic packaging machine
全国服务热线:
159-1595-6886(微信同号)全国服务热线:
159-1595-6886(微信同号)简介:Introduction

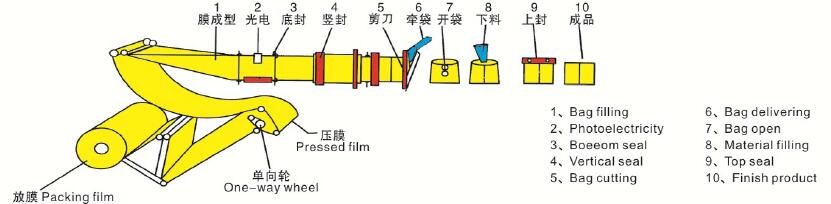

本机是我司引进欧洲同类机型先进技术,改良后的新一代全自动卷膜成型包装机.集制袋、计量、灌装、封口于一体。可根据客户的不同要求实现三边封,四边封以及自立袋制袋二另外可以自动冲易撕边,充挂孔。配套不同的下料系统可以满足粉剂、颗粒、液剂等物料的包装要求。本机制袋、封口和充填是相对独立的系统。通过机械联动及可编程序控制器(PLC)进行协调联动,满足不同袋子尺寸的要求。
This machine is equipped with advanced technology of Europe similar product to created a new generation of full automatic pouch form fill seal packing machine. combine the bag forming, measuring,filling,sealing action as one body. We can achieve 314 sides bag seal, stand up pouch seal requirement. Easy tear and notching was available. With difference filling system it can be using in powder, granule, liquid etc material. The bag formjng and filling system are total separate. Using mechanical linkage and PLC control to meet difference bag size packing requirement
适用范围:Scope of application
适合医药.食品,日化,化工,农药等行业的粉剂,颗粒,块状,液体.膏体。酱类等物料之自动包装,自动完成制袋,计量(或多次充填),整形,封口。可装配打码,充气,放卡。
Suitable for medicine, foodstuff, commodity, chemical pesticideindustries of powder, granule, liquid, aste and jam material. To achieve full automaticpackage like forming, easuring, filling and sealing process. Date printing,air inflation was available
机器优势:Machine advantage
1、运行平稳、速度快、制袋完美、耗能低。
Operate steadily, fast speed, bag making faultlessly, low power consumption.
2、机器可实现多工位需求。
Multi material can be filling in one pouch.
3、采用PLC控制,包装速度快,运行平稳,故障率低、耗能低。
By PLC control system, packing speed is more fast, operate more steadily. low failure rate and loe pawer
consumption.
4、独立的物料充填装置,有效避免细粉物料的反扑、反溅;确保封口质量。
Independent material filling device, powder splash could be avoided to insure the sealing effect.
5、三边封口、四边封口任意选择,制袋平整外型美观。
The machine can make 3 sides seal and 4 sides seal,sealing effect smooth and beautiful.
6、配置不同的充填机构。可以实现粉剂、液体、颗粒、酱类的不同包装。
Using difference filling system can packing material like:liquid,powder granule and paste etc
技术参数:Technical Parameter
袋型Sachet type | 制袋 horizontal pouch | 三/四边封3/4 sides |
双联袋Duplex bagpre-make bag | ||
自立袋stand up pouch | 自立袋stand up pouch | |
袋子尺寸范围 | 最大尺寸Max.Size | 180mm(W)x225mm(L) |
Sachet size range | 最小尺寸Min.Size | 85mm(W)x100mm(L) |
计量范围 Filling Rate | 50-400m1(custamized) | |
包装速度 Packfng Speed | 40-60 bagslmin | |
主机功率 Electricity Pawer | 5kw | |
电源要求 Working Voltage | 380V/50Hz | |
卷膜直径 Film Roll Diameter | 500 mm | |
最大膜宽 Max Film Width | 450mm | |
耗 气 量 Air Consumption | 0.7m3/min | |
机器尺寸 Machine dimension | 2320x980x1550 mm | |
机器重量 Machine Weieht | 1300kg |
