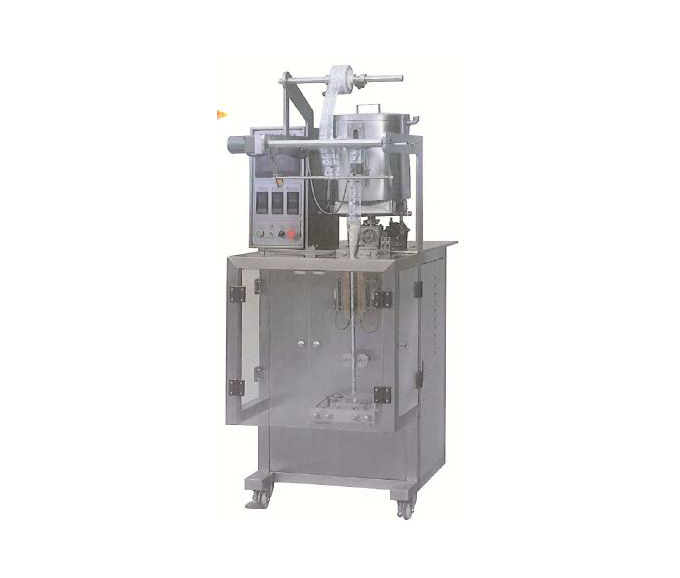

OCL-320CD果冻条自动包装机 Jelly stick automatic packaging machine
全国服务热线:
159-1595-6886(微信同号)全国服务热线:
159-1595-6886(微信同号)用途:Application
果冻、饮料、水果汁、豆奶、油粉、酸奶的条状或棒装包装。
It is suitable for jrlly, beverage, fruit juice, bean milk, oil powderor soru milk in botl7 bar and stick shape.
功能:Function
自流式节流下料。封口为背封;撇电脑控制系统.人机界面设定;自动完成制袋、计量、充填、封合、计数、分切及热压批号(可定制)等作业。
This unitadopts selfflow type feeding and back side sealing, micro-computercontro HMltouch setup that can auto complete pouch一making, measuring filling, sealing,counting, sliding and hear press lot number (customizde anailable)ect.
技术参数:Technical Parameter
制袋范围 Bag Making Range | Length:30-280mm Width:10-90mm |
包装速度 Packing Speed | 25-110 bags/min |
计量范围 Filling Range | 5-300ml |
包装膜最大宽度 Film Max- width | 90mm |
包装膜最大外径 Film Max. Out Dia | D90mm |
下料方式 Weighe Checker | 液体泵Oump Filler |
功 率 Main Power | 1.2kw |
电 源 Power Supply | 220V 50Hz |
机 重 Weight | 300kg |
外形尺寸 Dimension | 700x850x1850mm |
